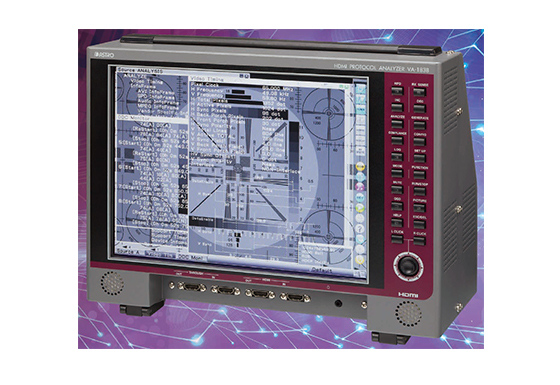

HDMI 300MHz協(xié)議分析儀VA-1838
? HDMI 4K×2K（30p）信號分析
? All-in-one便攜式分析儀
? HDMI Lip Sync測試
? CEC, DDC Line波形顯示
? 4K×2K Dot-by-Dot顯示
? HDMI兼容性測試仿真
您若對該產(chǎn)品感興趣，歡迎通過電話或微信公眾號進行進一步溝通、查詢！

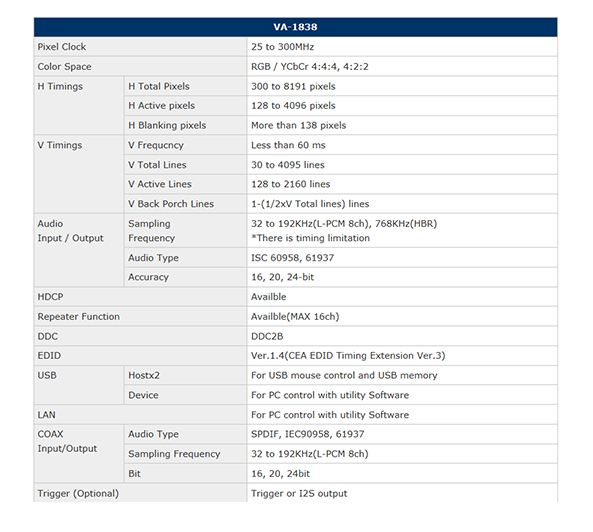

? 4K×2K timings generating and analyzing (3840 x 2160/23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 4096x2160/24Hz) note) Through mode supports up to 165MHz (TMDS clock 225MHz).
? Analyzing video timings, audio information, HDCP status, InfoFrame, EDID, xvYCC Deep color.
? 3D display by switching Left and Right images. ARC (Audio Return Channel) detect for both input and output channels.
? Log function and Line capture for DDC and CEC line.
? user friendly operation with mouse control. USB memory data storage. Maximum five data window display on 12.1" LCD display.

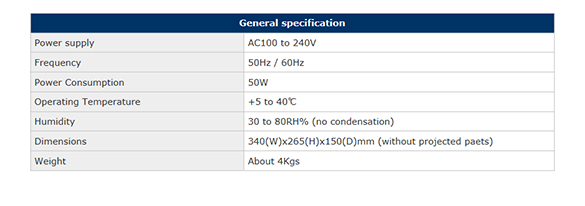

通用指標
